Product Models
| ATK |
MTK / HTK |
UTK |
 |
 |
 |
| Platform must be folded one time and then it will be moved 180 degrees to rest on the lifting arms. |
This is the simplest model with the lowest weight. The platform is normally one piece but it could be a two piece platform that travels behind the doors. |
Completely ready to install, including the sliding cylinder. The installation is very quick like our other new models. If an electrical short occurs, the platform can still be moved, to the travel position, because of the gas cylinder. The power pack is very simple and easy to maintain. |
Perfection in every detail
The new AHT range of liftgates consists of a more cost effective two and three cylinder system compared to the well known 4 cylinder models.
The newest models were designed for small vehicles with a short overhang and low bed height. This also helps to increase the payload of the vehicle.
All new models are completely mounted, adjusted and tested before leaving the factory. The installation is very quick. No welding is required as the mounting brackets simply slide into place. Drill 8 holes and install the bolts.
Weight
Less weight means more payload and more payload means more income. AHT high strength aluminum profiles are extremely light in weight.
Example.: ATK-500ST/AL without underrun beam, ready for work, incl. mounting material: 382 lbs .
Power Pack
- Compact design can be mounted on the left or right side of vehicle
- Two button remote control for Up and Down operation
- Hydraulic system is only used to lift up the platform
- Two hand safety control
All-Aluminum Cylinders
- Ceramic coated pistons are standard
- Extremely long life span
- Tested for more than 800 thousand cycles without
changing seals
- Noiseless operation at all temperature ranges
- Resistance against salt water and other aggressive
fluids

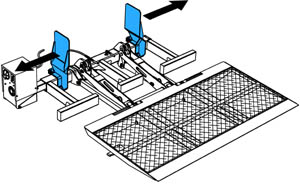

Mounting bracket
The mounting brackets can be moved on the crossbeam of the tailgate loader, so a simple and quick installation without welding is possible.
Long life and low maintenance
Cylindersare equipped with mechanical hose burstvalves to protect the driver and goods during lifting and lowering of the platform.- The platform will stop immediately, if a hose breaks, so the operator will not be injured and the goods are protected.
- The 2-button control is equipped with a pull out protector to prevent an electrical short and also to protect the uncontrollable movement of the platform.

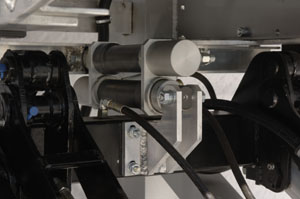

Tailgate loader: UTK-750ST/AL
An very short tandem cylinder allows installation even if the vehicle overhang is short.
Miscellaneous Items
- No electronic parts
- All steel parts are powdered coated
- One size hydraulic hoses
- Chrome plated bolts with DU Bearings
- All brackets and screws are made of Stainless Steel
Options
- Three button Foot Control
- Flashing Lights
- Roll Stops

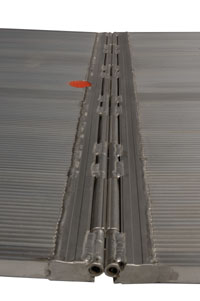

The continous aluminum hinge is guided by a stainless steel rod that has a grease fitting at every section.
| ATK-Model |
Mechanism |
Platform |
Capacity
(lbs) |
Load Center
(inches) |
Platform Size
W x L (inches) |
Weight
(lbs) |
| ATK-500ST/ST |
Steel |
Steel |
1100 |
20 |
60 x 37 |
468 |
| ATK-500ST/AL |
Steel |
Aluminum |
1100 |
20 |
60 x 37 |
382 |
| ATK-500AL/AL |
Aluminum |
Aluminum |
1100 |
20 |
60 x 37 |
298 |
| ATK-750ST/ST |
Steel |
Steel |
1650 |
20 |
71 x 37 |
521 |
| ATK-750ST/AL |
Steel |
Aluminum |
1650 |
20 |
71 x 48 |
448 |
| ATK-750AL/AL |
Aluminum |
Aluminum |
1650 |
20 |
71 x 48 |
320 |
| ATK-1000ST/AL |
Steel |
Aluminum |
2200 |
20 |
87 x 46 |
545 |
| ATK-1000AL/AL |
Aluminum |
Aluminum |
2200 |
20 |
87 x 46 |
404 |
| MTK-Model |
Mechanism |
Platform |
Capacity
(lbs) |
Load Center
(inches) |
Platform Size
W x L (inches) |
Weight
(lbs) |
| MTK-500ST/M |
Steel |
Steel Mesh |
1100 |
20 |
69 x 38 |
463 |
| MTK-500ST/AL |
Steel |
Aluminum |
1100 |
20 |
69 x 38 |
408 |
| MTK-500AL/AL |
Aluminum |
Aluminum |
1100 |
20 |
69 x 38 |
309 |
| MTK-750ST/M |
Steel |
Steel Mesh |
1650 |
20 |
69 x 50 |
543 |
| MTK-750ST/AL |
Steel |
Aluminum |
1650 |
20 |
83 x 50 |
488 |
| MTK-750AL/AL |
Aluminum |
Aluminum |
1650 |
20 |
83 x 50 |
347 |
| MTK- 1000 ST/M |
Steel |
Steel Mesh |
2200 |
20 |
79 x 50 |
593 |
| MTK-1000ST/AL |
Steel |
Aluminum |
2200 |
20 |
79 x 50 |
523 |
| MTK-1000AL/AL |
Aluminum |
Aluminum |
2200 |
20 |
79 x 50 |
391 |
| UTK-Model |
Mechanism |
Platform |
Capacity
(lbs) |
Load centre
(inches) |
Platform Size
W x L (inches) |
Weight
(lbs) |
| UTK-500ST/ST |
Steel |
Steel |
1100 |
20 |
60 x 37 |
530 |
| UTK-500ST/AL |
Steel |
Aluminum |
1100 |
20 |
60 x 37 |
474 |
| UTK-500AL/AL |
Aluminum |
Aluminum |
1100 |
20 |
60 x 37 |
386 |
| UTK-750ST/ST |
Steel |
Steel |
1650 |
20 |
71 x 37 |
538 |
| UTK-750ST/AL |
Steel |
Aluminum |
1650 |
20 |
71 x 48 |
503 |
| UTK-750AL/AL |
Aluminum |
Aluminum |
1650 |
20 |
71 x 48 |
448 |
| UTK-1000ST/ST |
Steel |
Steel |
2200 |
20 |
87 x 60 |
748 |
| UTK-1000ST/AL |
Steel |
Aluminum |
2200 |
20 |
87 x 60 |
710 |
| UTK-1000AL/AL |
Aluminum |
Aluminum |
2200 |
20 |
87 x 60 |
607 |
| UTK-1500ST/ST |
Steel |
Steel |
3300 |
20 |
87 x 67 |
1073 |
| UTK-1500ST/AL |
Steel |
Aluminum |
3300 |
20 |
87 x 67 |
1015 |
| UTK-1500AL/A/L |
Aluminum |
Aluminum |
3300 |
20 |
87 x 67 |
732 |
| UTK-2000ST/ST |
Steel |
Steel |
5500 |
20 |
87 x 67 |
1374 |
| UTK-2000ST/AL |
Steel |
Aluminum |
5500 |
20 |
87 x 67 |
1275 |
| UTK-2000AL/AL |
Aluminum |
Aluminum |
5500 |
20 |
87 x 67 |
1026 |
